Deterioration Indicator

RH-23

Visually check for deterioration or malfunction of power distribution equipment day and night

Customization is available on request.
Please contact us for more information.

Features

1.Large display unit: The display is large and easy to visually check.

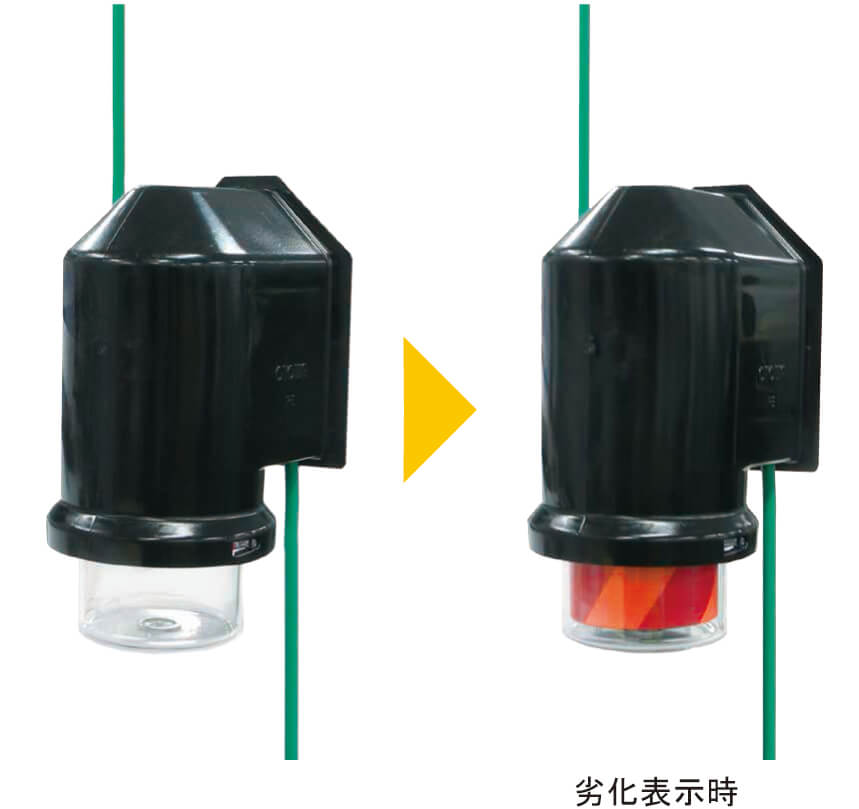

2. Detection of deterioration and failure even at night: When power distribution equipment such as transformers, switchgear, and surge arresters deteriorate or fail, the deterioration indicator (red fluorescent sheet and reflective sheet) protrudes.; Operation at degradation
3. Detects deterioration without power supply

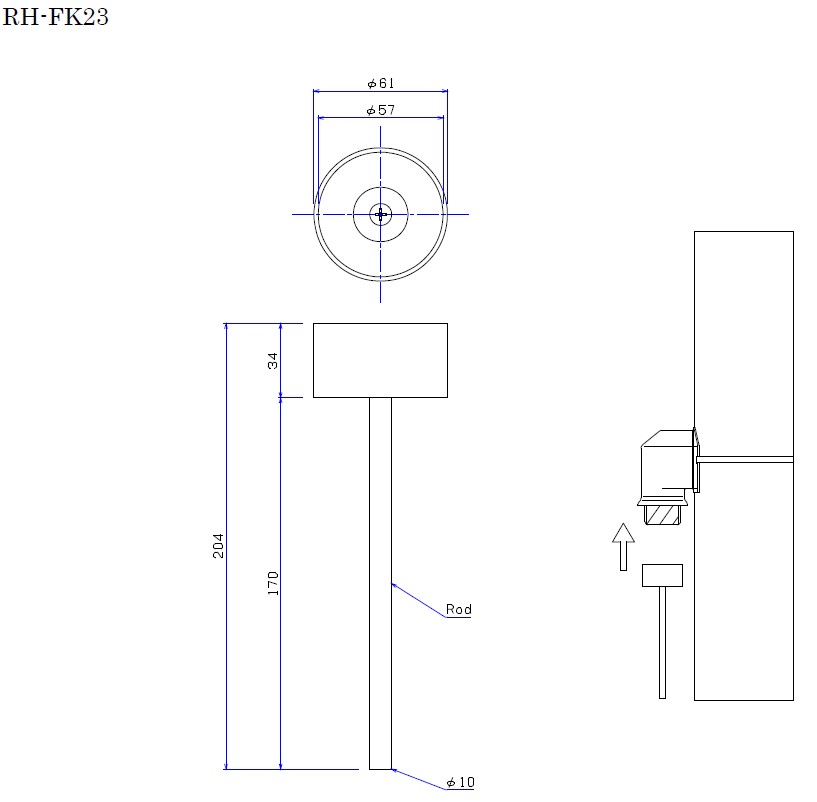

4. Can be used as many times as required: The deterioration indicator can be restored by using the Return rod for the degradation indicator (Separately sold item Return rod type: RH-FK23).
5. Can be installed without power failure

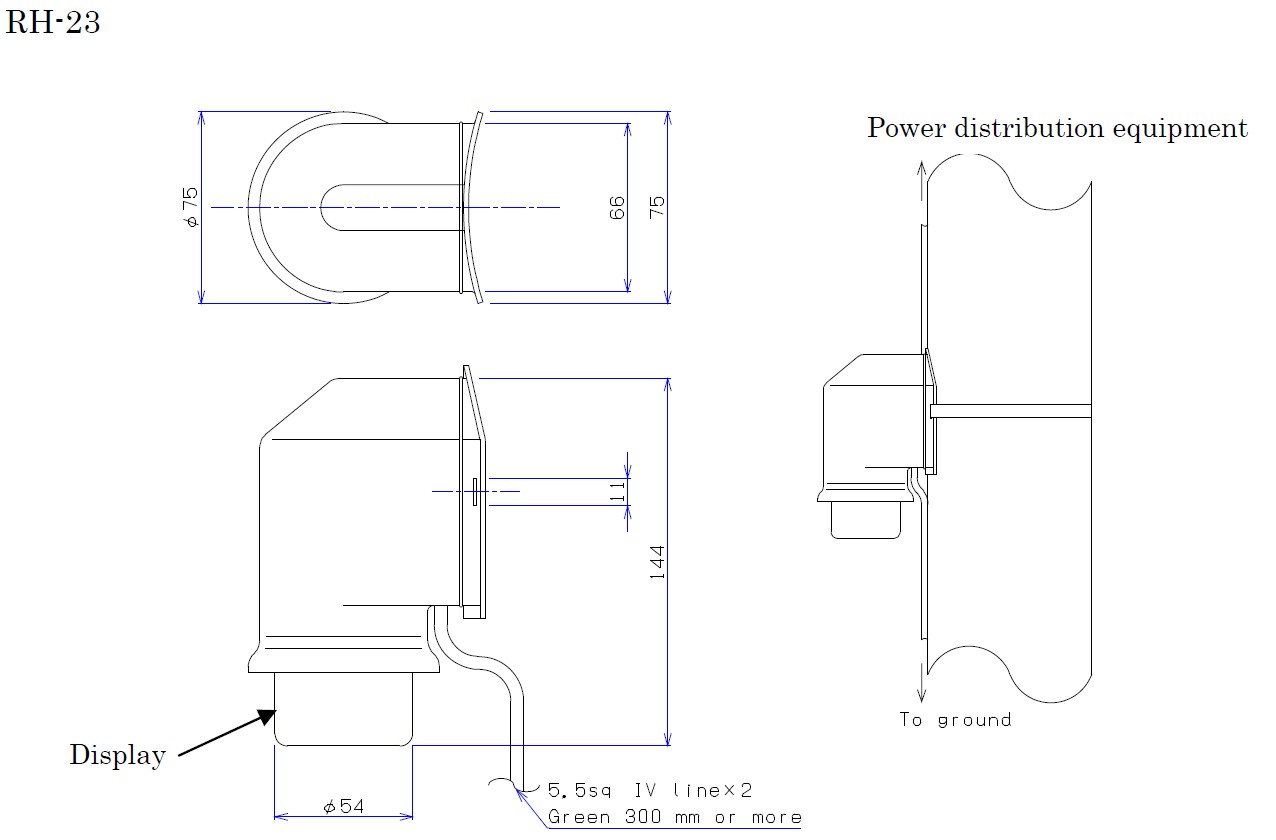

RH-23

Customization is available on request. Please contact us for more information.

Type	RH-23
Operating characteristics	Within 1 second at 1A to 30A
Discharge withstand	Lightning impulse large current (4/10µs)	30kA 3times
Discharge withstand	Square wave impulse current (2ms)	75A once
Lead wire	5.5 mm²(green)
Installing method	Installing with a stainless band (width 10mm) Stainless band is not attached to RH-23.
Operating temperature	-35℃ to +40℃
Weight	about 300g
Separately　sold item return rod	Type: RH-FK23 The return rod is not attached to RH-23

Visual checks day and night for deterioration or failure of distribution equipment
