Arc horn with current limiting element

Arcing horn with current limiting element

POZC-B6SU, POZC-B15SU, POZC-B15L

  • Prevent accidental breakage or disconnection of insulators



    Customization is available on request.
    Please contact us for more information.

Features

1.Prevention of damage to insulators or accidental disconnection

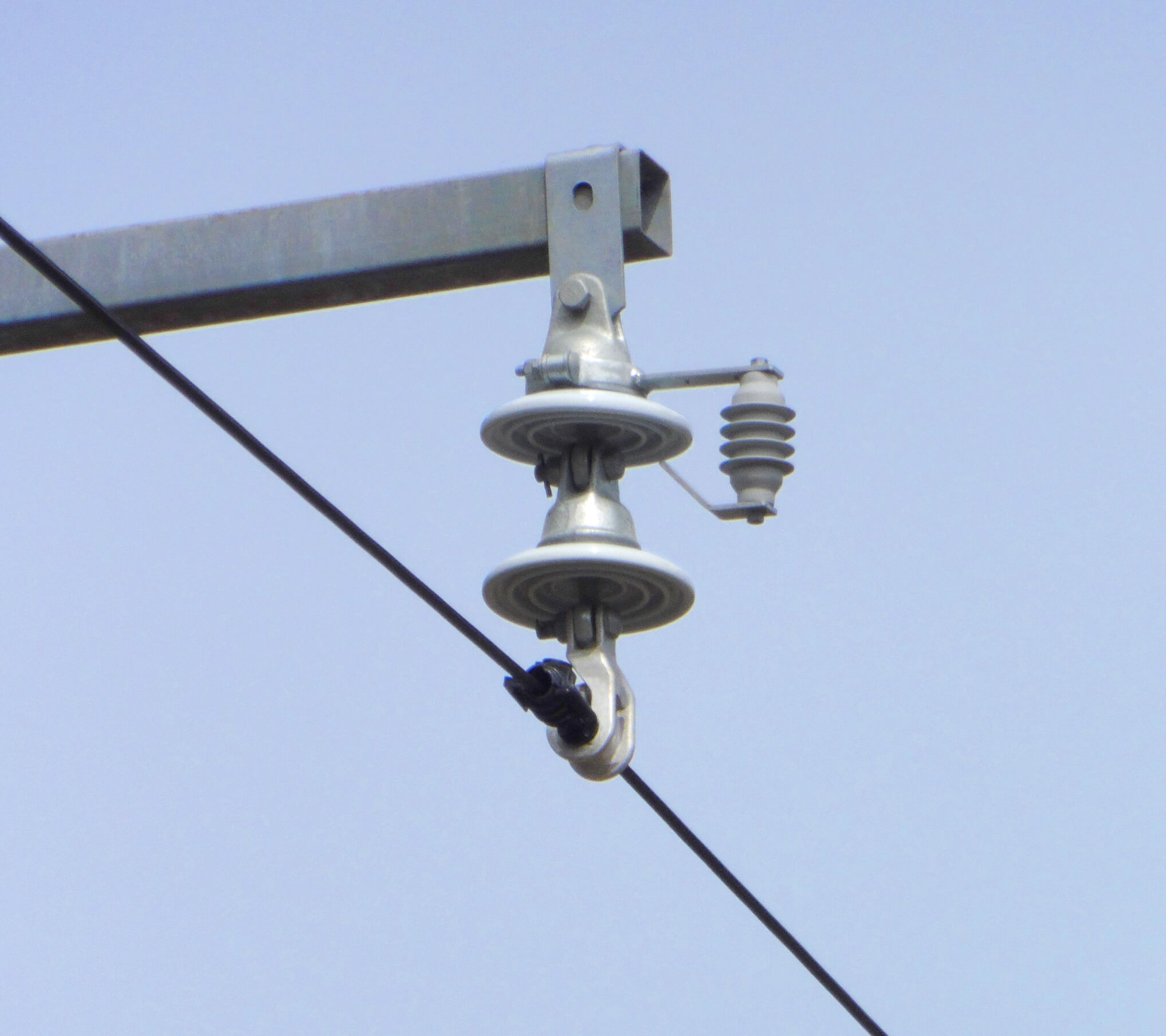

Installed in parallel with two suspension insulators, it discharges lightning surge and interrupts the continuous flow, thus preventing damage to the insulators or disconnection.

2.Easy to install
No adjustment of gap length or grounding work is required, and installation per unit can be completed in a few minutes.

3.Prevention of pinholes
By attaching a discharge electrode (sold separately) to the wire, pinholes (insulation breakdown of insulated wires) are prevented.


Customization is available on request. Please contact us for more information.

Type

POZC-B6SU   6.6kV for 2 suspensions
POZC-B15SU   1500V for two suspension cylinders
POZC-B15L   1500V for long-trunk insulators

Customization is available on request. Please contact us for more information.

Dimension drawing

POZC-B6SU, POZC-B15SU, POZC-B15L
