SPD for Data Networks and Ethernet Applications

OLA-1000POE, OLA-CAT6S

  • Universal SPD for Industrial Ethernet, Power over Ethernet (PoE++ according to IEEE 802.3bt up to 60V) and similar applications in structured cabling systems according to Class D up to 250MHz. Protection of all pairs by powerful gas discharge tubes. DIN rail mounted adapter type with sockets.
  • JISクラスⅠ・Ⅱ
  • JISクラスⅠ・Ⅱ

Features

・Ideally suited for retrofitting, protection of all lines
・For use in structured cabling systems according to Class D up to 250MHz
・Power over Ethernet(PoE++ according to IEEE 802.3bt)
・For installation in conformity with the lightning protection zone concept at the boundaries from 0B-2 and higher
・EU RoHS Compliant with regulated substances

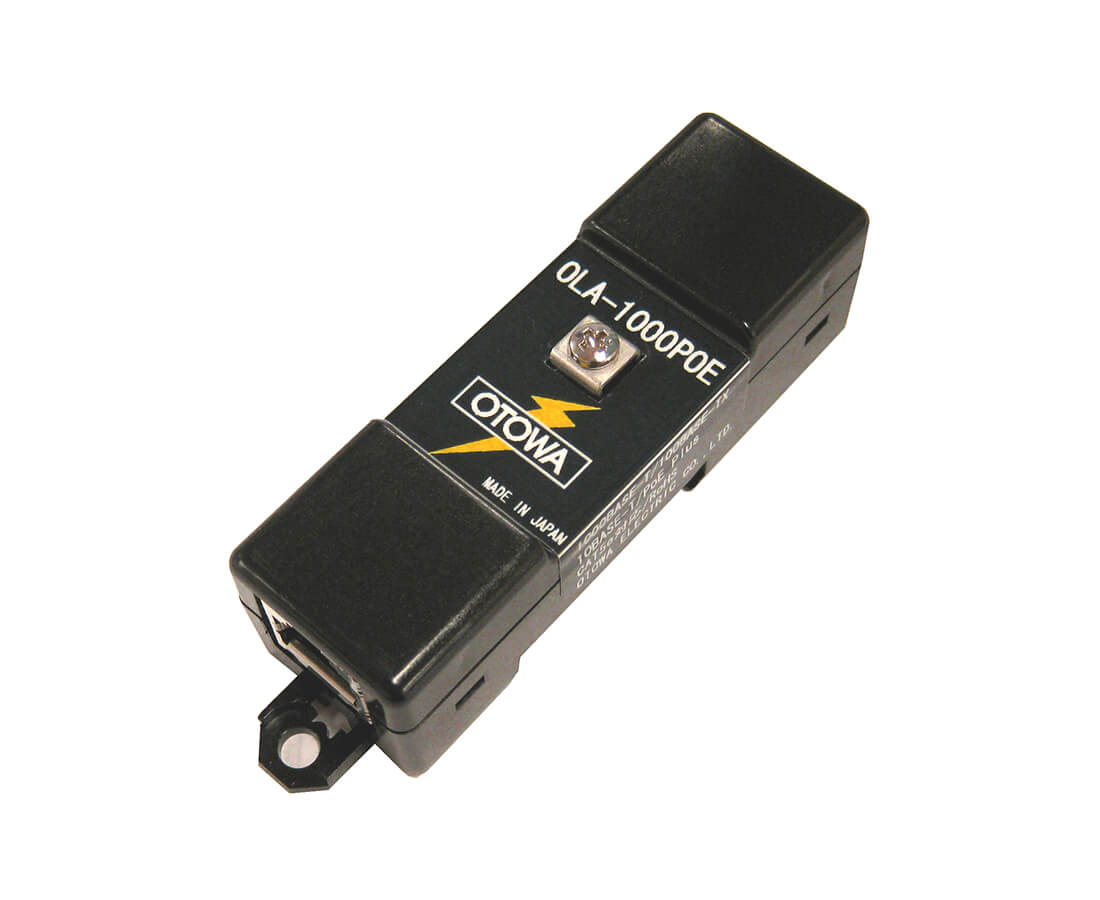

OLA-1000POE

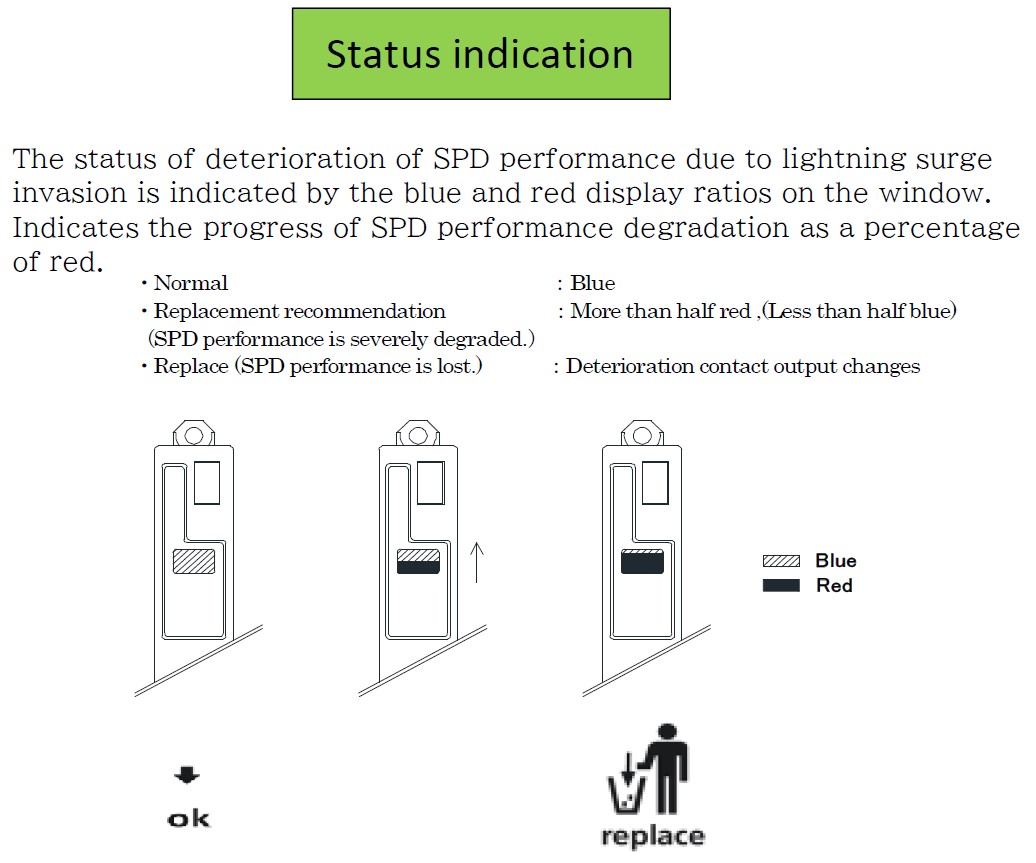

Status indication for OLA-CAT6S

Type

OLA-1000POE
OLA-CAT6S

Specification

Type OLA-1000POE OLA-CAT6S ; With indicator
SPD Class C2 ， D1
Max. continuous operating d.c. voltage (Uc) 60V
Nominal current (IL) Total line 1A 2A
Impulse Durability (C2:8/20μs) Total line/SG)-PG 5kA 10kA
Impulse Durability(D1:10/350μs) Total line/SG-PG 2.0kA 2.5kA
Voltage protection level line-PG (up) ≦500V
Transmission Frequency DC～100MHz DC～250MHz
Insertion loss ≦1.0dB （at 100MHz） ≦1.0dB （at 100MHz）
≦3.0dB （at 250MHz)
Capacitance line-line ≦30pF ≦20pF
Correspondence communication standard 10BASE-T (IEEE802.3i)
100BASE-TX (IEEE802.3u)
1000BASE-T (IEEE802.3ab)		 10BASE-T (IEEE802.3i)
100BASE-TX (IEEE802.3u)
1000BASE-T (IEEE802.3ab)
1000BASE-TX (TIA/EIA-854)
Power over Ethernet PoE (IEEE802.3af)
PoE Plus (IEEE802.3at)
PoE++ (IEEE802.3bt)
Alternative A, B,		 PoE (IEEE802.3af)
PoE Plus (IEEE802.3at)
PoE++ (IEEE802.3bt)
LTPoE++
UPoE
HDBaseT
Alternative A, B, 4-pair mode
up to 120W
Operating state / fault indication - blue / red
Type of remote signalling contact - changeover contact
d.c. switching capacity - DC30V / 0.5A
Operating temperature range (Tu) -20℃～+60℃ -40℃～+75℃
Weight approx. 60g approx. 70g
Enclosure material / color Polycarbonate/Black
Degree of protection IP 20
For mounting on 35mm DIN rails acc. To EN 60715
Connection (input/output) RJ45 socket / RJ45 socket
Available transmission classes Up to Category 5e Up to Category 6
Pinning 1/2, 3/6, 4/5, 7/8
Earthing via 35mm DIN rails. or M4 screw 35mm DIN rails. or M4 screw
Test standards IEC 61643-21

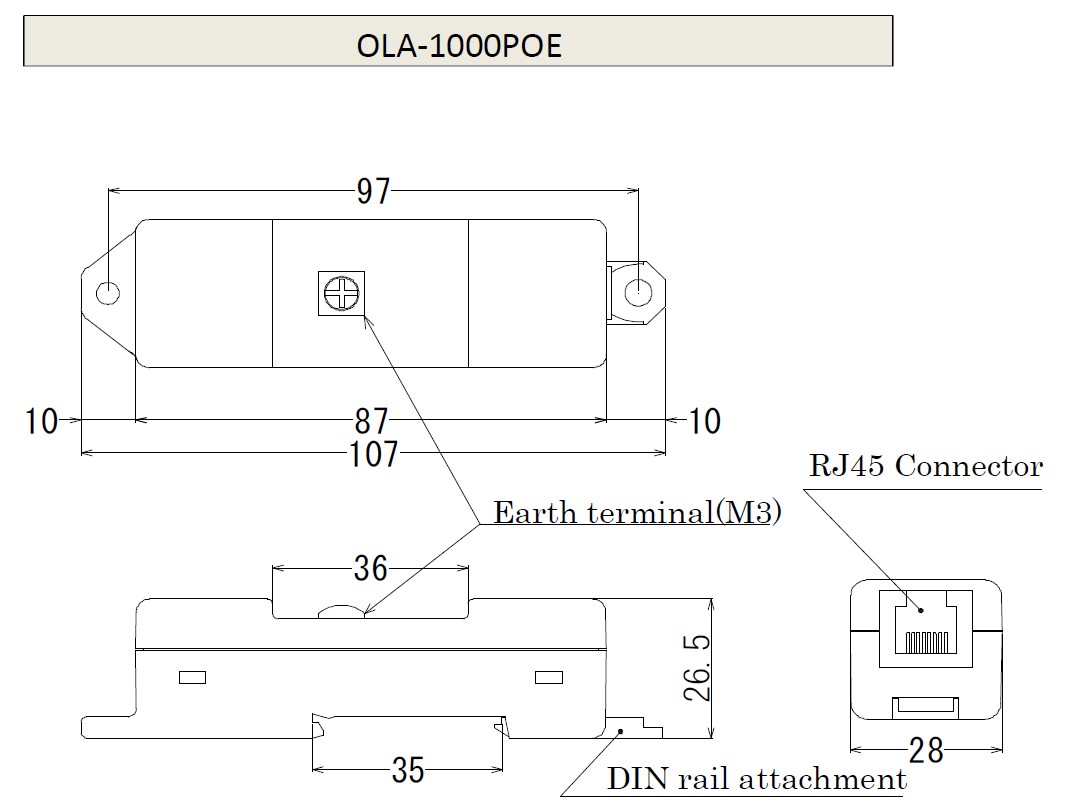

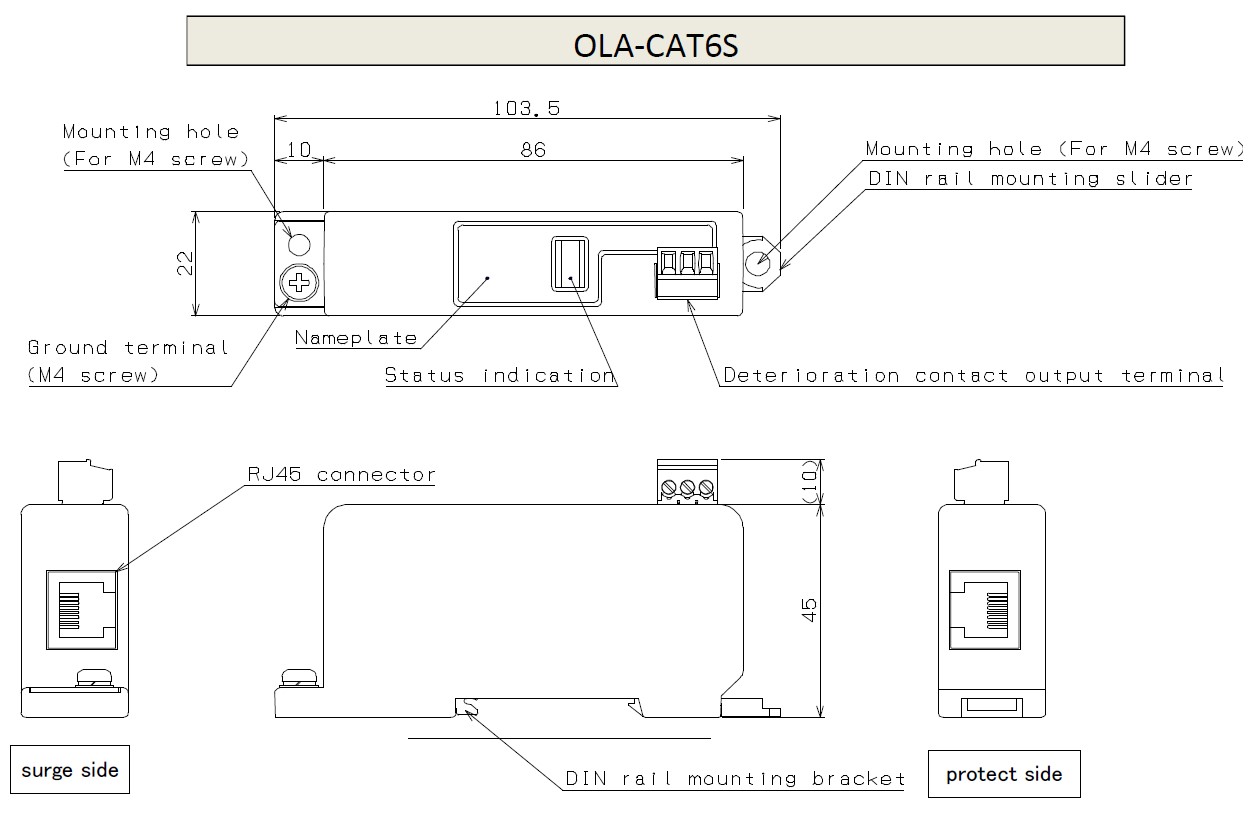

Dimension drawing

OLA-1000POE
OLA-CAT6S
