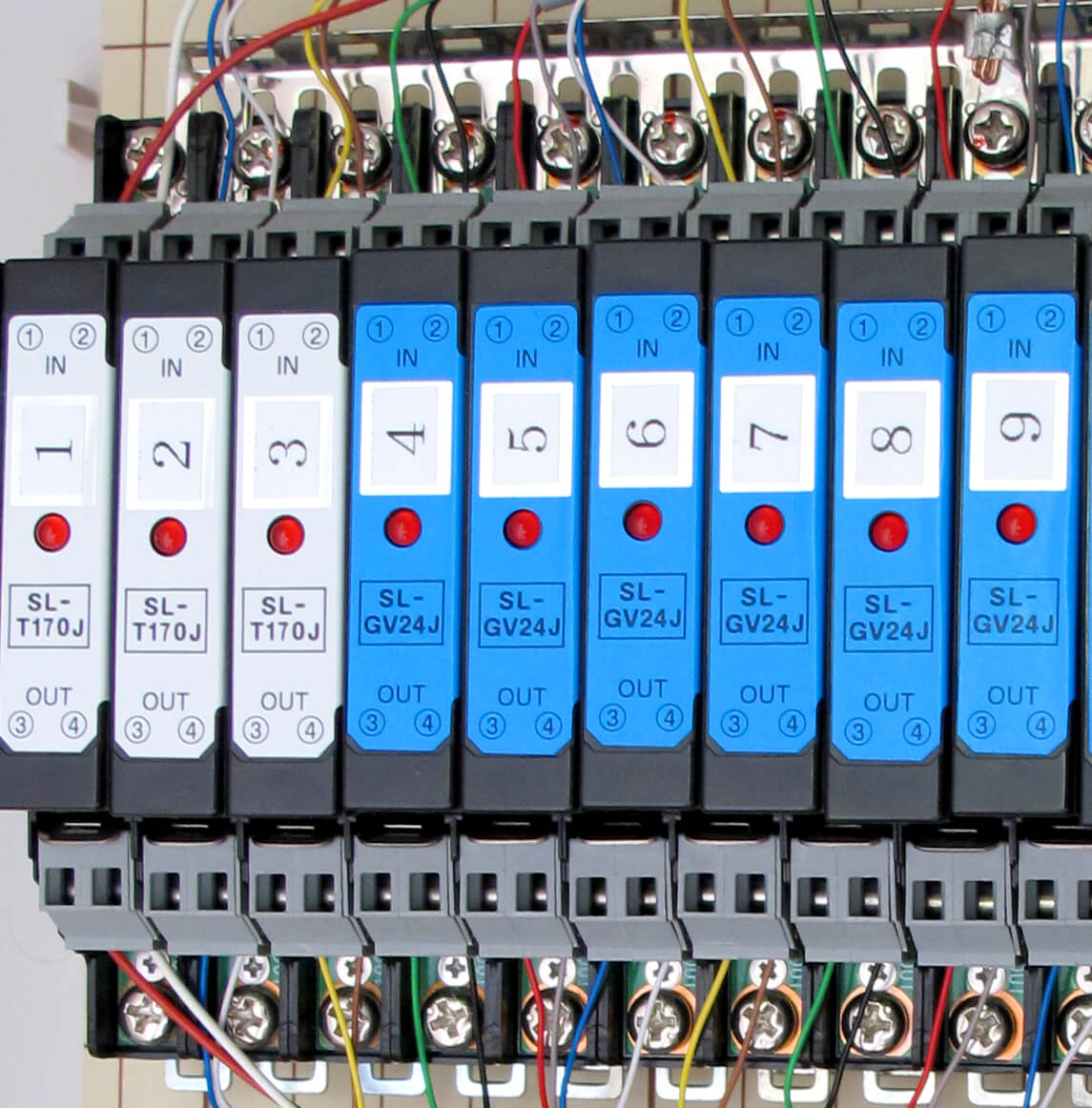

SL-GV5J, SL-GV12J, SL-GV24J, SL-GV48J, SL-T170J
SL-GV5J
SL-GV12J
SL-GV24J
SL-GV48J
SL-T170J
| Type | SL-GV5J | SL-GV12J | SL-GV24J | SL-GV48J | SL-T170J |
|---|---|---|---|---|---|
| SPD Class (Category) | C2 ， D1 | ||||
| Nominal d.c. Voltage (Un) | 5V | 12V | 24V | 48V | 150V |
| Max. continuous operating d.c. voltage (Uc) | 5.7V | 13.0V | 25.2V | 52V | 170V |
| Rated current | 100mA | 200mA | |||
| AC Durability | 60Hz 0.5A 1sec 5shots | ||||
| Voltage protection level C2:8/20μs:5kA D1:10/350μs:2.5kA |
L-L : ≦35V L-E : ≦400V |
L-L : ≦45V L-E : ≦400V |
L-L : ≦60V L-E : ≦400V |
L-L : ≦115V L-E : ≦400V |
L-L : ≦400V L-E : ≦500V |
| C2 Nominal discharge current (8/20μs) |
5kA | ||||
| C2 Total Nominal discharge current (8/20μs) (In) |
10kA | ||||
| D1 Lightning impulse current (10/350μs) |
2.5kA | ||||
| D1 Total Lightning impulse current (10/350μs) (Iimp) |
5kA | ||||
| Insertion Loss | ≦1.5dB | ||||
| Series impedance per line | 9.1 ohm(s) | ||||
| Cut-off frequency line-line (fG) Characteristic impedance 600Ω |
4.8MHz | 1.1MHz | 2.7MHz | 4.8MHz | 4.0MHz |
| Typical Capacitance line-line (at 1MHz, 1Vrms) |
≦180pF | ≦850pF | ≦500pF | ≦180pF | ≦200pF |
| Operating temperature range (Tu) | -20℃ ～ +60℃ | ||||
| Weight | approx. 60g | ||||
| Enclosure material / Color | Polycarbonate/Black | ||||
| Place of installation | Indoor installations | ||||
| Degree of protection (Plugged-in) | IP20 | ||||
| Status indication | Operating state: LED lighting (need 5V dc) | ||||
| For mounting on | 35mm DIN rails acc. to EN 60715 | ||||
| Cross-sectional area | AWG 28 – 12 （AWG12It may not be usable depending on the outer diameter of the cable sheath.） |
||||
| Test standards | IEC 61643-21 | ||||
