SPU-T170J、SPU-GV24J

Signal line SPD SPU series for LSA Technology

SPU-GV24J, SPU-T170J

  • SPD with indicator, Easy Visual confirmation of operating state
  • JISクラスⅠ・Ⅱ
  • JISクラスⅠ・Ⅱ

Features

・LSA disconnection block function integrated in the SPD provides protection during testing, disconnecting and patching
・Low voltage protection level for the protection of terminal
・Operating state / fault indication by red indicator flag
・EU RoHS Compliant with regulated substances

Type

SPU-GV24J
SPU-T170J

Specification

Type SPU-GV24J SPU-T170J
SPD Class (Category) C2 , D1
Nominal d.c. voltage (Un) 24V 48V
Max. continuous operating d.c. voltage (Uc) 36.5V 170V
Rated current 120mA
AC Durability 60Hz 0.5A 1sec 5shots
Voltage protection level
C2:8/20μs:2kA D1:10/350μs:1kA
L-L : ≦80V
L-E : ≦500V
L-L : ≦350V
L-E : ≦500V
C2 Nominal discharge current
(8/20μs)
5kA
C2 Total Nominal discharge current
(8/20μs) (In)
10kA
D1 Lightning impulse current
(10/350μs)
1kA
D1 Total Lightning impulse current
(10/350μs) (Iimp)
2.5kA
Insertion Loss ≦1.0dB (at 10MHz)
≦1.5dB (at 35MHz)
≦1.0dB(at 5MHz)
≦1.5dB(at10MHz)
Series impedance per line 9.5 ohm(s)
Cut-off frequency line-PG (fG)
Characteristic impedance 100Ω
35MMz 10MHz
Typical Capacitance(at 1MHz, 1Vrms) L-L:≦600pF
L-E:≦5pF
L-L:≦100pF
L-E:≦5pF
Operating temperature range (Tu) -10℃~+50℃
Weight approx. 14g
Enclosure material / Color Polycarbonate/Black
Place of installation Indoor installations
Degree of protection IP 20 (when plugged in)
Fault indication Red pin come out
Test standards IEC 61643-21

Purpose

Protects equipment from lightning surges entering through communication lines (telephone lines, signal lines).
SPU-T170J: For MDF multi-line general telephone lines, ISDN and ADSL
SPU-GV24J: for DC24V signal

Basic Circuit Diagram

Connection SPU LSA-Plus

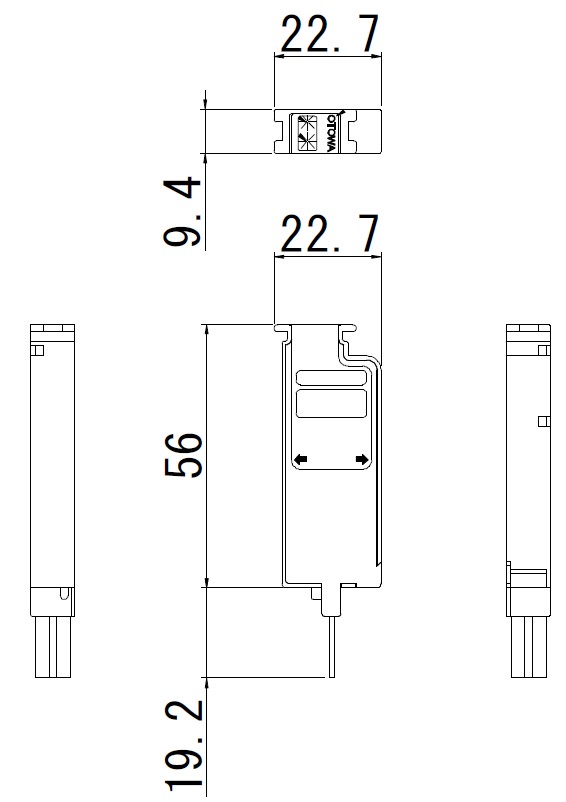

Dimension drawing

SPU-GV24J, SPU-T170J
SPU-GV24J, SPU-T170J

Product can be associated with Signal line SPD SPU series for LSA Technology

SPU LSA-Plus

Optional accessories (LSA Technology)

  • 10‐pair Earth bar:5909 3 041-00, 6089 1 121-60, 6089 1 121-02, MF-22-01, MF-22-03, MF-30-05, MF-50-10-M, 6089 3 202-00, 6460 1 046-05, 6460 1 046-10, 6460 1 046-20

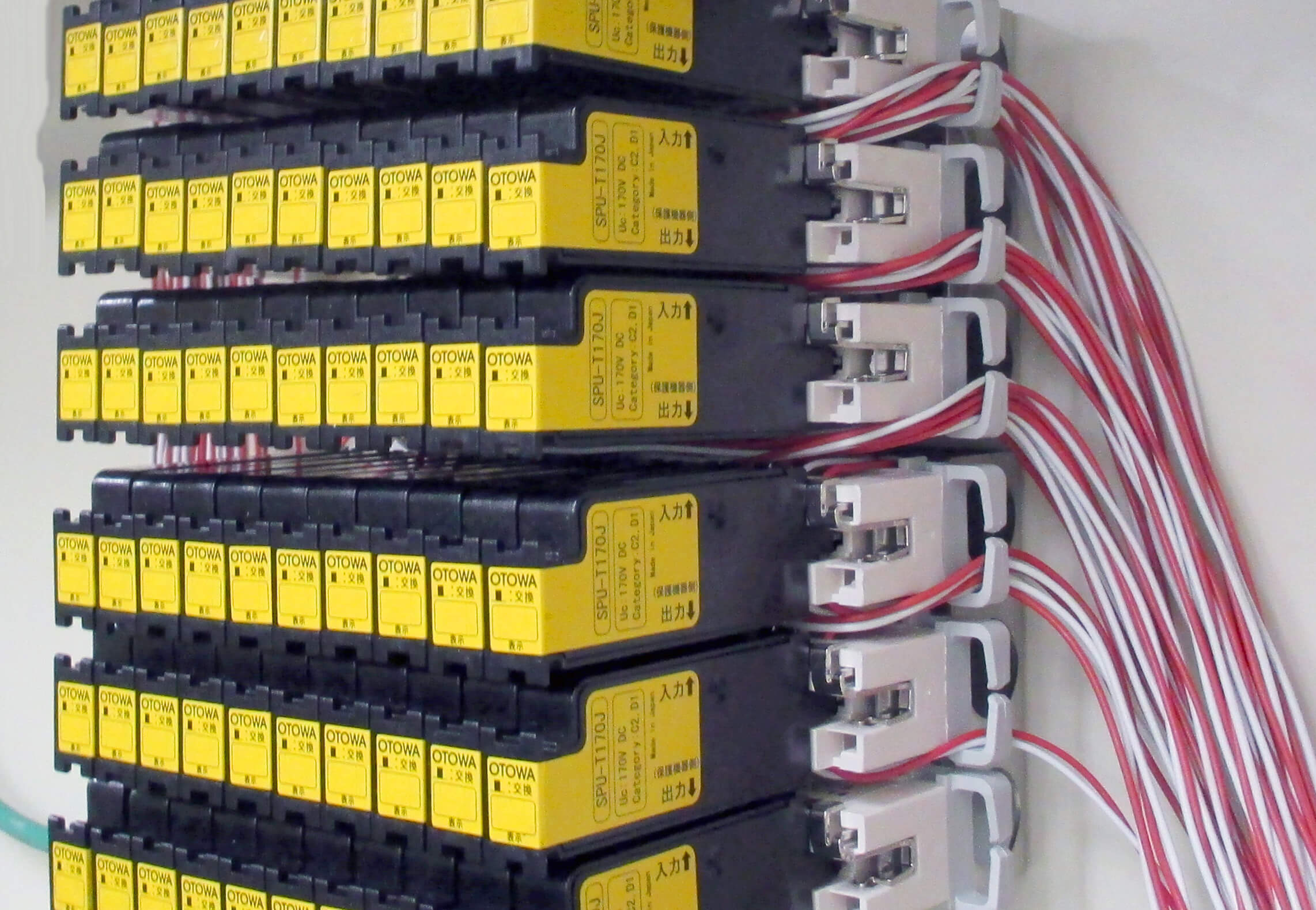

Installation to 10‐pair BMF
