AT-6P2A

Arrester Checker

AT-6P2A

  • This tester for inspection and maintenance of Surge arrester with Gap and Surge Arrester without Gap

Features

・Capable of diagnosing the deterioration of 6.6kV distribution surge arrestor elements
・Easy to operate and automatic measurement (discharge start voltage, element deterioration judgment, operation start voltage)
・Gapped and gapless surge arresters can be tested.
・Gapped surge arresters can also be diagnosed

Type

AT-6P2A

Specification

Type AT-6P2A
Power source AC100V to 240V（50／60Hz）
Applied arrester 3.3kV, 6.6kV arresters for distribution line
Arresters for DC 1500V railway line
Other arresters measurement range as shown in below
Generation voltage DC35kV（max.）(Positive polarity)
Measurement range Gap type arrester DC9kV(Min.)
Gapless arrester DC1kV(Min.)
Measurement digits Two decimal places
Measurement items SA with Gap : Sparkover voltage
SA with Gap : Reference voltage
SA without Gap: Reference voltage (V1mA,V0.1mA)
Operating temperature 0℃ to +50℃
Mass About 12kg
Attachment Power cable（3m）×1piece
Earth wire （3m）×1piece
Measurement cable of high voltage side（2.5m）×1piece
Measurement cable of earth side（2.5m）×1piece
Lead wire for discharge（1m）×1piece

Purpose

This tester for inspection and maintenance of Surge arrester with Gap and Surge Arrester without Gap

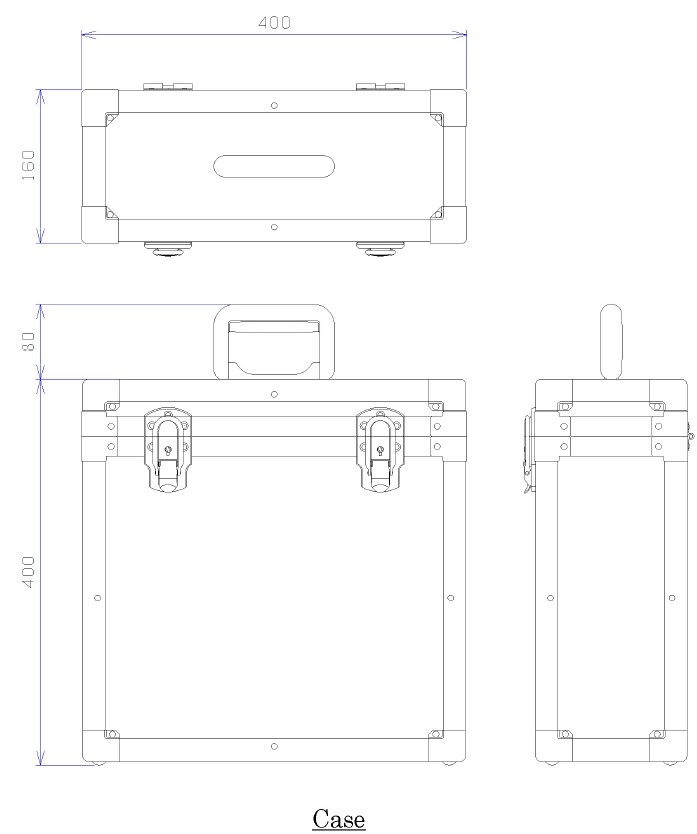

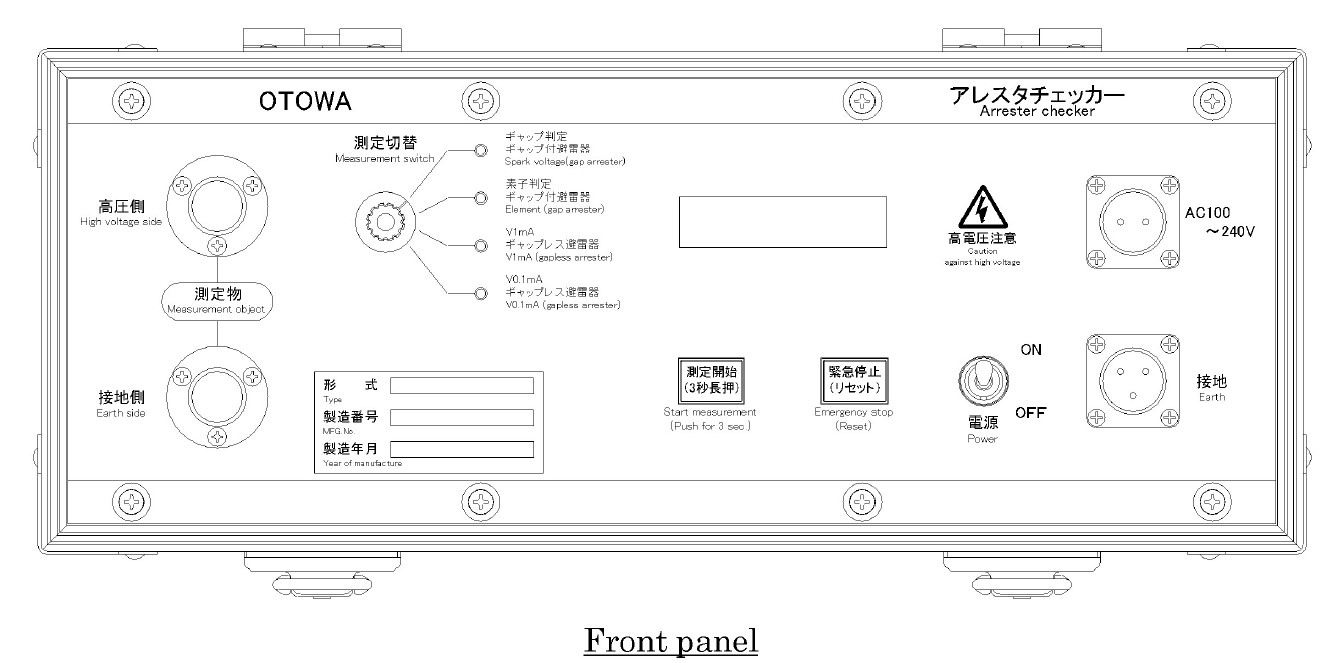

Dimension drawing

AT-6P2A
AT-6P2A
