SCA-12N200KS

Surge counter

SCA-12N200KS

  • Suitable for direct lightning strikes of up to 200kA.

    OTOWA Surge counter can detect above certain lightning current that flows through earth wire and can indicate the number of them.
  • JISクラスⅠ・Ⅱ

Features

・No power source or batteries required. Can be used in places where AC power is not available
・Compact, lightweight and easy to install

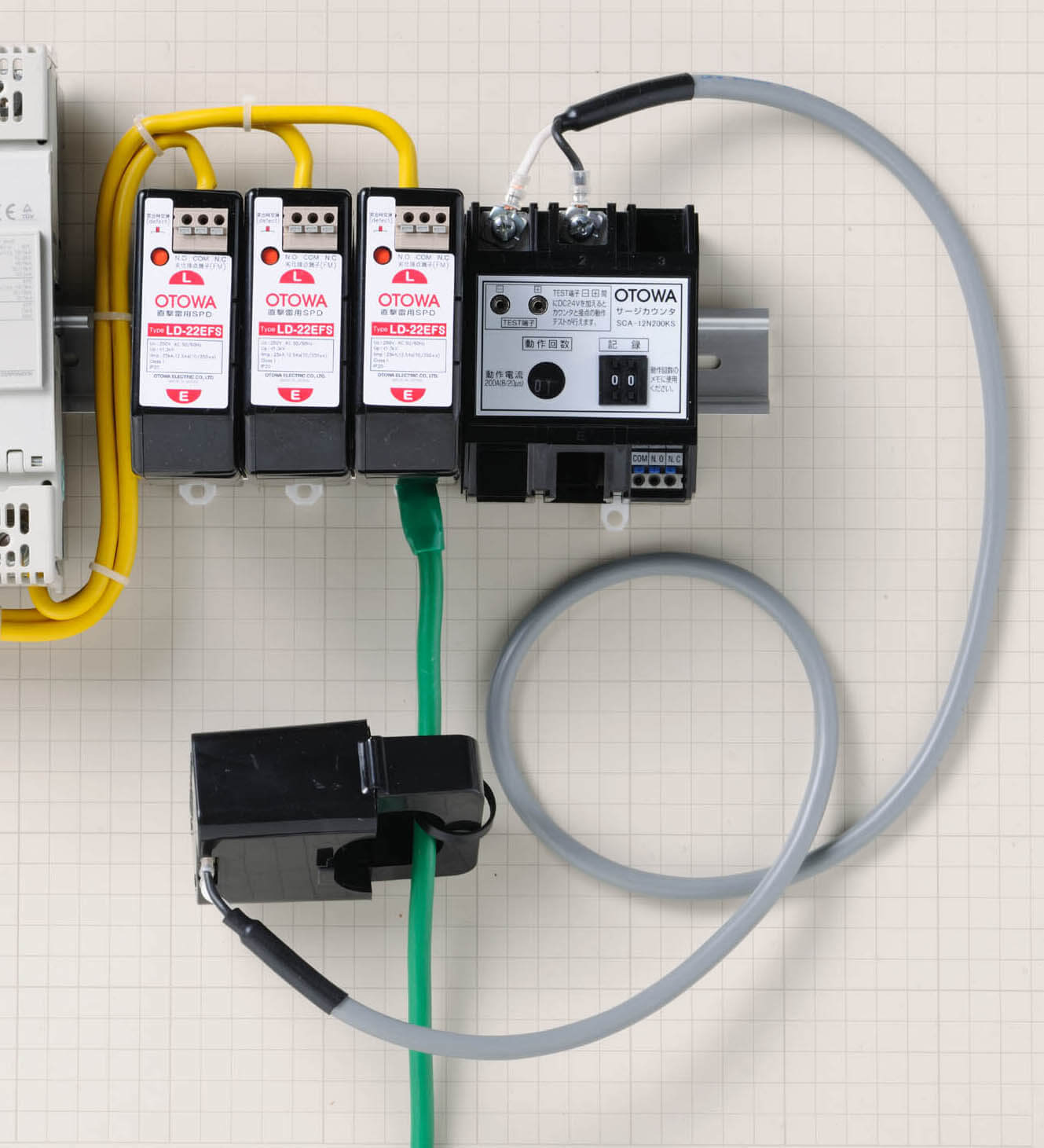

・Count the number of invasion of surge by simply passing an earth wire through the CT
・EU RoHS Compliant with regulated substances

Type

SCA-12N200KS

Specification

Type SCA-12N200KS
Power source voltage unnecessary
Operating current (8/20μs) 200A
Max. current 200kA (8/20μs or 10/350μs)
Indication Electro-magnetic counter 2digits
(count max. 99 times)
Signal contact Operating time for 5ms
Capacity of signal contact output DC 3V 2A, AC 12V 0.5A
Installing method 35mm DIN rail
Operating temperature -10℃ ～ +50℃

Purpose

Surge detector for detecting lightning surges and other lightning events, even for direct lightning strikes of up to 200kA

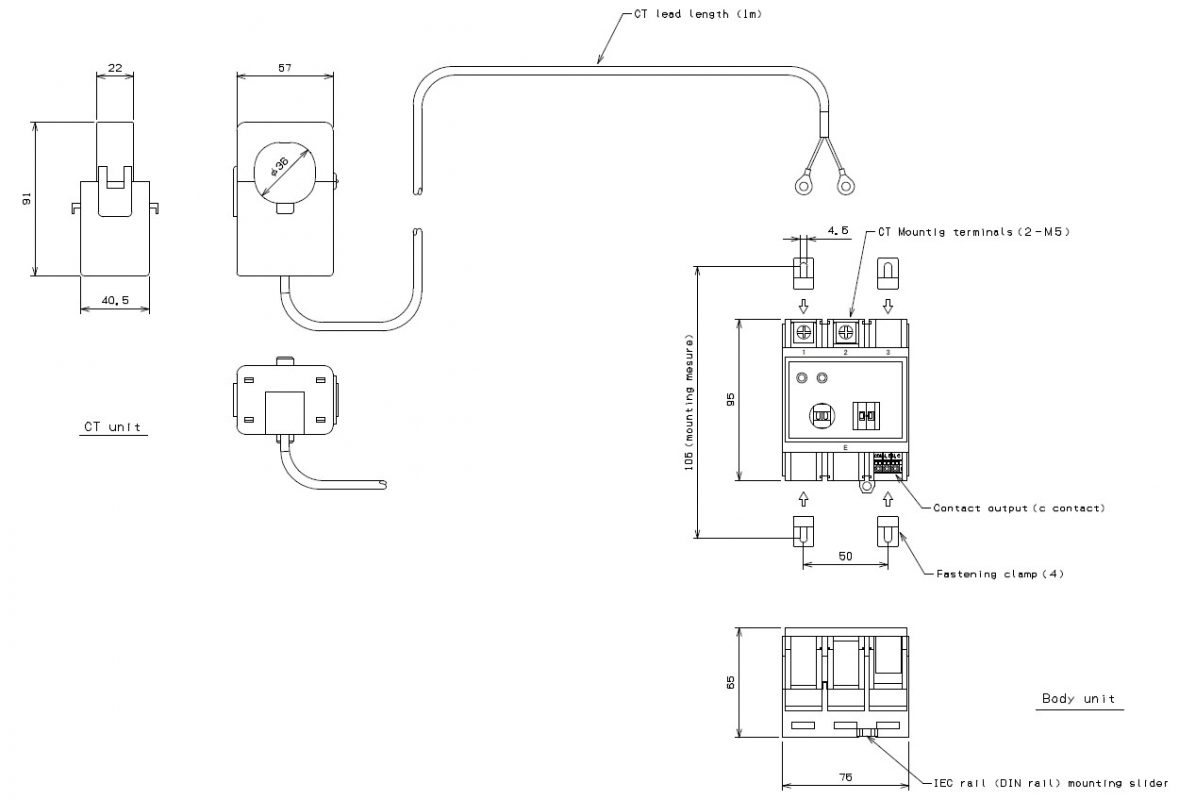

Dimension drawing

SCA-12N200KS
