Surge recorder

OLR-31C

  • OTOWA Surge recorder can detect and record above certain lightning current that flows through earth wire and can indicate the number and current level, date, time of them.
  • JISクラスⅠ・Ⅱ

Features

・Records and displays the level of surge current entering the earth wire etc. and its detection time.
・As the data is recorded in text format, it can be displayed on a PC without the need for special software.
・Outputs a contact at the time of surge current detection and SPD degradation detection (a contact for 1 second)

Type

OLR-31C

Specification

Type OLR-31C
Power source LR03(AAA) × 4 (3 years)
Range of record surge current (8/20μs) 100A/500A/1000A
Max. current 25kA (8/20μs or 10/350μs)
Recorded data Range of surge current, year, month, day, time
Recording interval 5sec
Recording medium SD card (2GB)
Number of recording data 999 (text data)
Signal contact operating time for 1sec.
Capacity of signal contact output Type of contact : a
DC 30V 1A, AC125V 0.5A
Installing method 35mm DIN rail / M4 screw
Operating temperature 0℃ ~ +50℃

Purpose

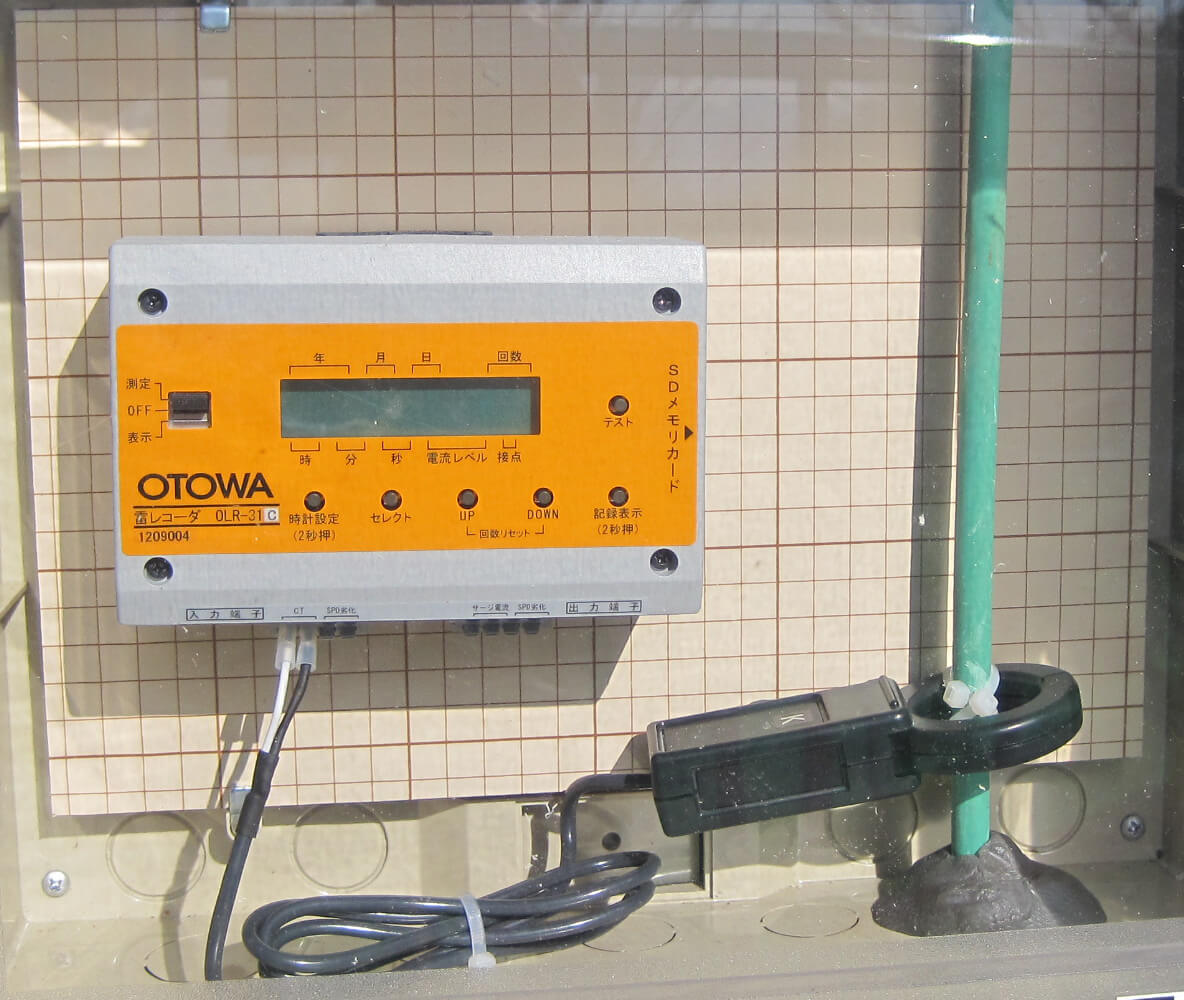

Surge detector to detect lightning surges.
It records the size of the surge, the time of detection, and can extract information from the table.
With surge counter function

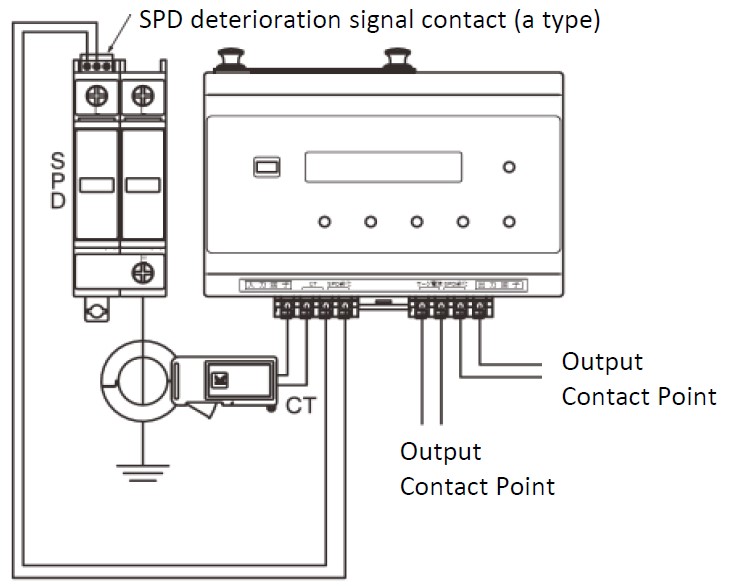

Basic Circuit Diagram

OLR-31C

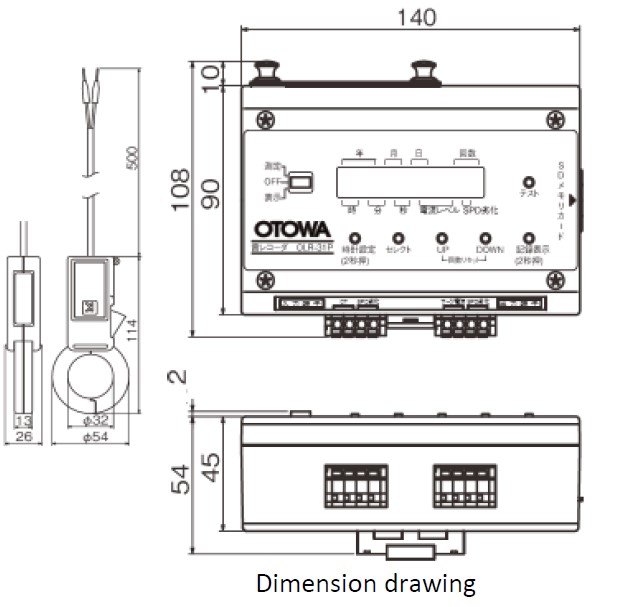

Dimension drawing

OLR-31C
