Isolation Type Surge protector for Data Networks and Ethernet Applications

OLA-PT1000

LAN line Isolation type Surge Protector are specialized for application of LAN.

Features

・Designed and tested to manage the transient overvoltages invading the Local Area Network of date centers, important computer room and offices connected to the braodband network
・10BASE-T, 100BASE-T, 1000BASE- T
・DIN Rail installation
・Ground wire unnecessary
・EU RoHS Compliant with regulated substances

Type

OLA-PT1000

Specification

Type	OLA-PT1000
AC withstand Voltage	5kV 2sec
Impulse withstnd voltage (1.2/50μs)	7kV
Insertion Loss	≦1.5dB
Bandwidth	1-100MHz
Connector	RJ45 socket / RJ45 socket
Application	10BASE-T (IEEE802.3i) 100BASE-TX (IEEE802.3u) 1000BASE-T (IEEE802.3ab)
Applicable wire	UTP category 5e, 6, 6A
Available transmission classes	Up to Category 5e
Operating temperature range (Tu)	-20℃～+70℃
Weight	approx. 40g
Enclosure material / color	Polycarbonate / Black
Degree of protection	IP 20

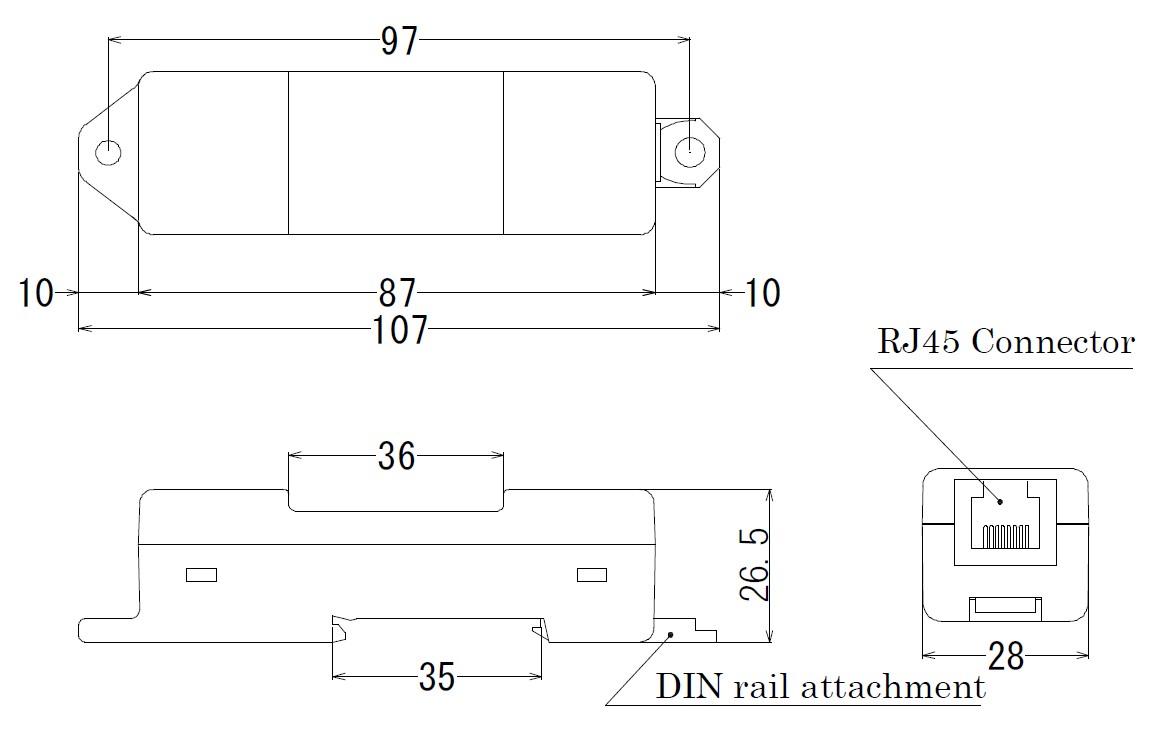

For mounting on	35mm DIN rails. or M4 screw

Purpose

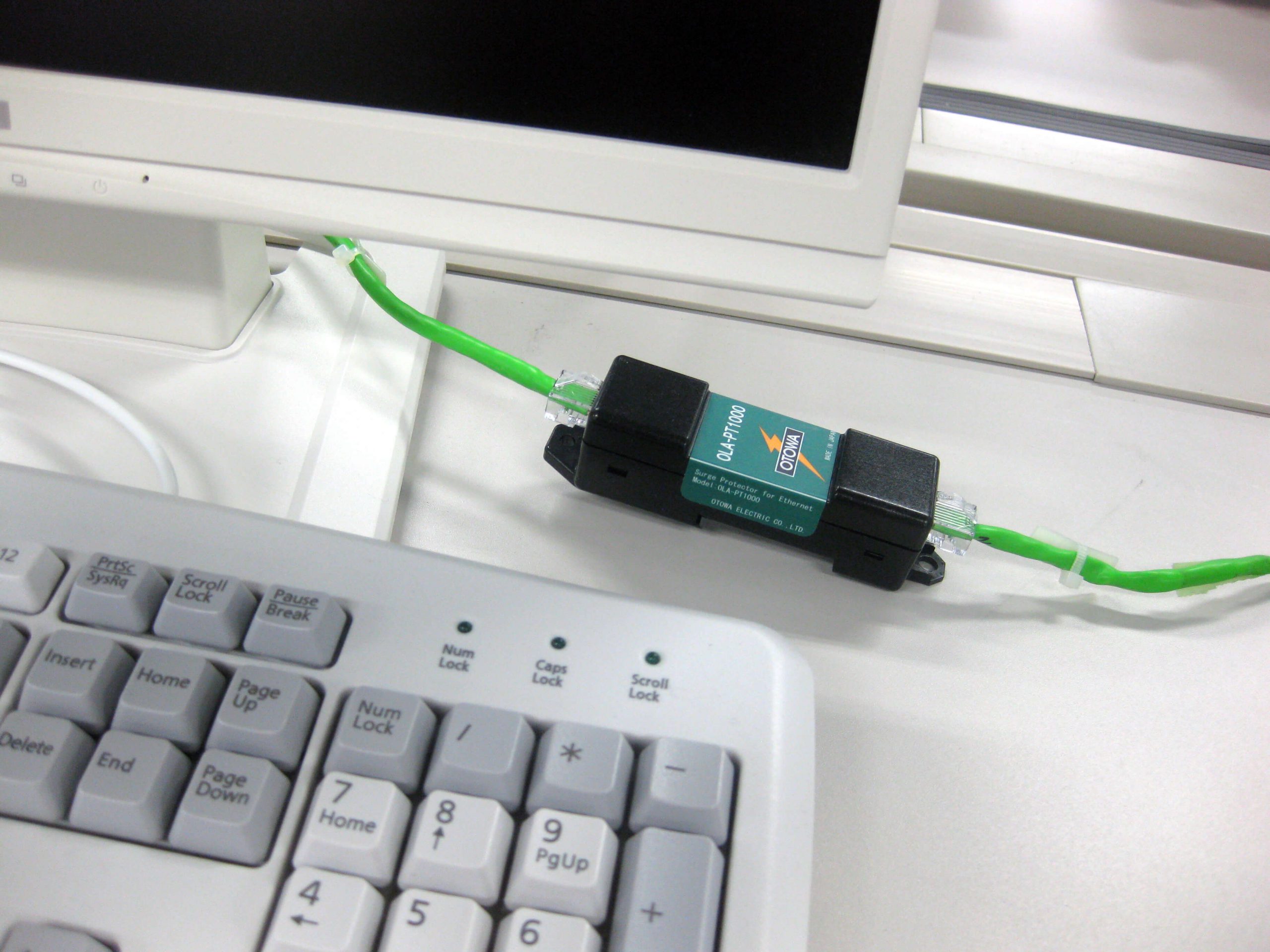

Protects equipment from lightning surges entering through LAN lines (no earth wire required).
Servers, HUBs, network equipment, PCs
