OIT-14

Surge Impedance Meter

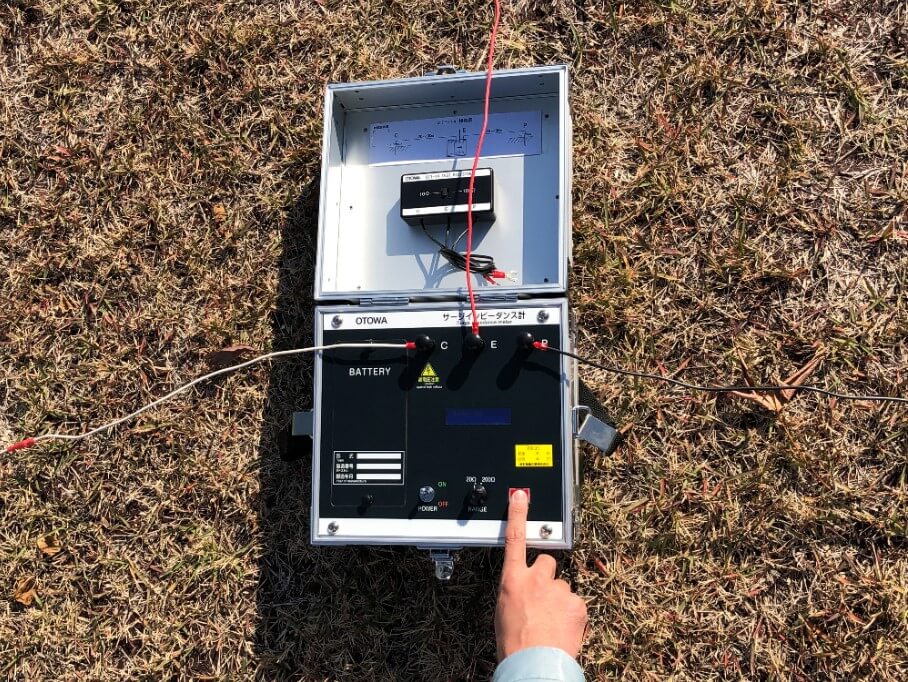

OIT-14

  • Measuring instrument for transient grounding impedance

Features

・This product can measure transient grounding impedance (Effective surge impedance ) , but a ground resistance tester cannot measure it.
・This product can measure transient grounding impedance without removing the overhead ground wire of the transmission tower.
・Small, lightweight, easy to operate
・Operation check with the test resistor

Type

OIT-14

Specification

Type OIT-14
Generating voltage 5kV
Current wave shape Right angle wave impulse
(0.5μs or less / 200μs or more)
Current peak value: approx. 1A
Measurement range 1 to 199Ω
Range dial 20Ω/200Ω switchabl
Power supply DC6V (D battery, 4pcs.)
Operating
temperature range		 0 to +50°C
Dimensions W: 260 D: 240 H: 170
(not including handle)
Main unit weight Approx. 6 kg

Purpose

Measures transient ground resistance (effective surge impedance) that cannot be measured with a ground resistance meter

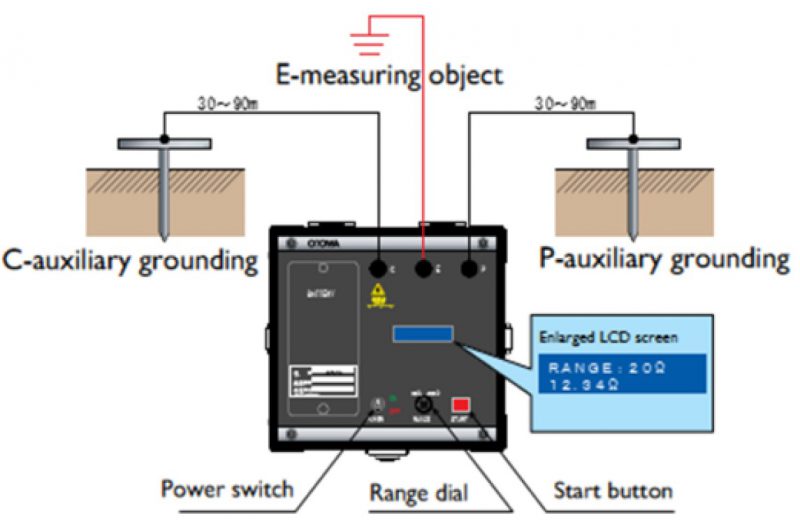

Basic Circuit Diagram

OIT-14

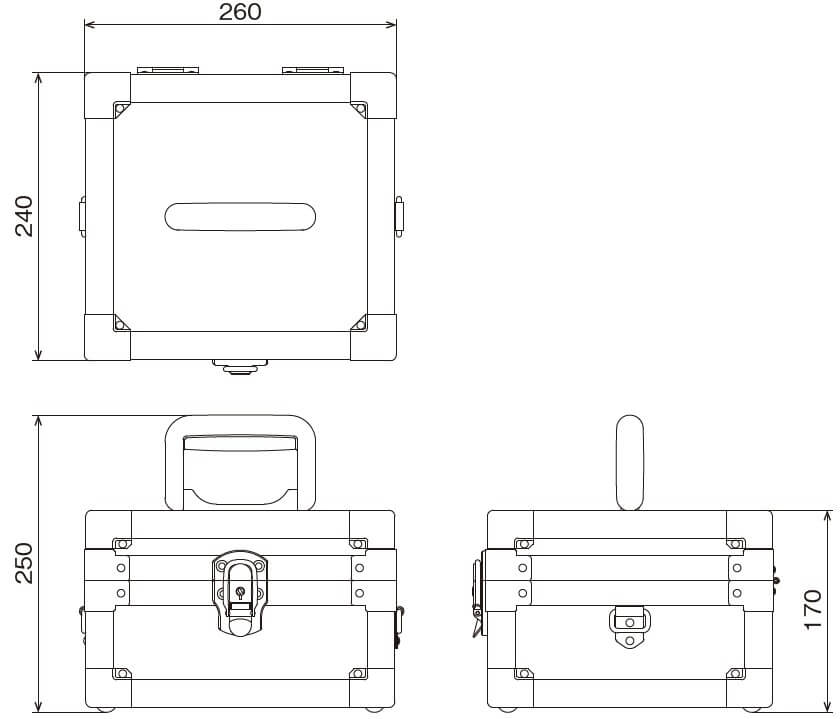

Dimension drawing

OIT-14
OIT-14
