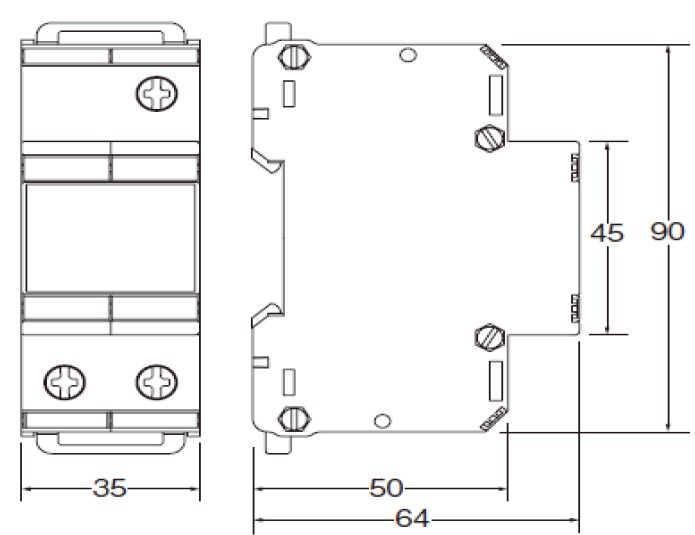

LD-22G,LD-25G
LD-22G
LD-25G
| Type | LD-22G | LD-25G |
|---|---|---|
| SPD according to EN 61643-11/IEC 61643-11 | type1 | |
| Nominal a.c. voltage (Un) | 230V (50 / 60 Hz) |
|
| Max. continuous operating a.c. voltage (Uc) | 255V (50 / 60 Hz) |
|
| Lightning impulse current (10/350μs) (Iimp) | 25kA | 50kA |
| Voltage protection level (Up) | ≦1.0kV | ≦4.0kV |
| Follow current extinguishing capbility a.c. (Ifi) | 17.5kArms | 4.0kArms |
| Response time (tA) | ≦50ns | |
| Max. backup fuse | 250 A gL/gG | |
| Operating temperature range | -40℃～ +85℃ | -40℃～+80℃ |
| Number of ports | 1 | |
| Cross-sectional area (L/N, N/PE (N)) (max.) | 50mm2 stranded / 35mm2 flexible | |
| Recommended conductor cross section | 25mm2 | |
| For mounting on | 35mm DIN rails acc. To EN 60715 | |
| Enclosure material | thermoplastic, UL 94 V-0 | |
| Place of installation | Indoor installations | |
| Degree of protection | IP 20 | |
| Capacity | 2 module(s)DIN 43880 | |
| Conformity to environment | Comply to RoHS requirement | |
| Remote signalling contact | Normal:ON Failure:OFF | |
| a.c. switching capacity | 250V / 2A | |
| Cross-sectional area for remote signalling terminals | max. 1.5mm2 solid / flexible |
|
