SPD for Coaxial Connection – BNC connection

CS-BNCJJ75-T90FG2, CS-BNCJJ75-T230FG2

Otowa High Frequency Surge Protective Device for coaxial cable are generally applicable for various signal lines. They are designed and tested to manage the transient overvoltages caused by lightning strikes on coaxial cables even sometimes connected directly to outside areas. The coaxial product lines cover the TV and CCTV systems and others with C2 and D1 impulse durability. They are avaiable with BNC connections.

Features

・SPD Class (Category)C2, D1 lightning durability
・Superior high frequency performance
・EU RoHS Compliant with regulated substances

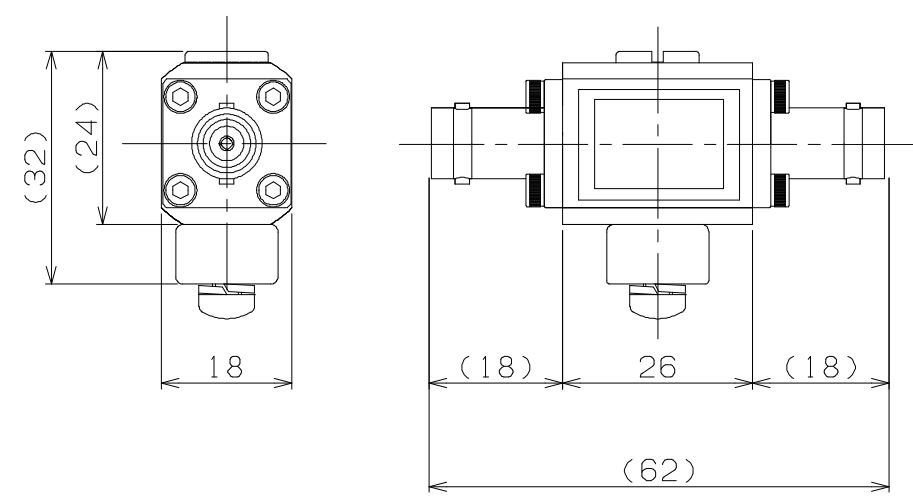

CS-BNCJJ75-T90FG2
CS-BNCJJ75-T230FG2

Type	CS-BNCJJ75-T90FG2	CS-BNCJJ75-T230FG2
SPD Class (Category)	C2 ， D1
Connector type	BNC
Connector type	socket /socket
Bandwidth	100kHz - 3.0GHz	100kHz - 3.0GHz
Impedance	75Ω	75Ω
Insertion loss	100kHz - 1.5GHz : ≤0.2 dB 1.5GHz - 2.2GHz : ≤0.4 dB 2.2GHz - 3.0GHz : ≤0.6 dB
Max. Continuous operating voltage (Uc)	60 Vdc	140 Vdc
Voltage protection level (8/20μs : Up)	L-L : ≤630V L-E : ≤700V	L-L : ≤650V L-E : ≤800V
C2 Nominal discharge current (8/20μs)	20kA
D1 Lightning impulse current (10/350μs)	2.5ｋA
Maximum allowable power	50W	80W
Rated current	-	-
Overstressed fault Mode	mode 2	mode 2
Voltage Standing Wave Ratio (VSWR)	100kHz - 1.5GHz : ≤1.1 1.5GHz - 2.2GHz : ≤1.2 2.2GHz - 3.0GHz : ≤1.4

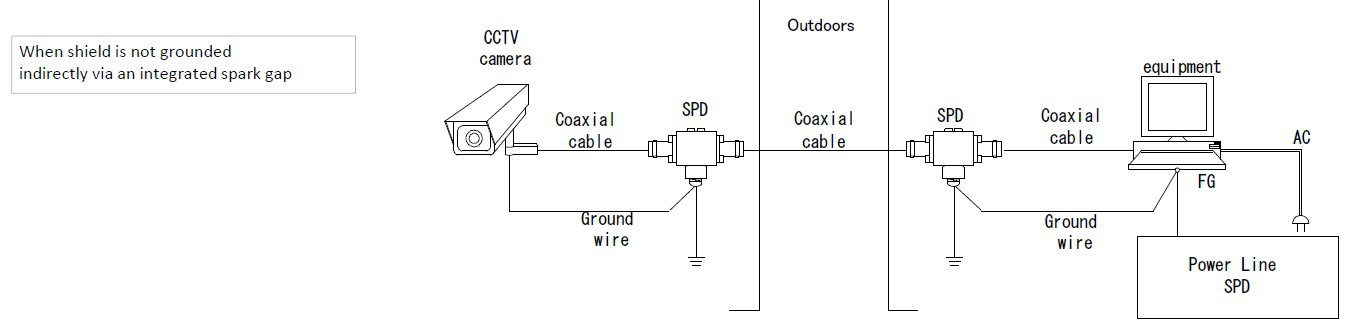

Shield earthing	indirectly via an integrated spark gap
Operating temperature range (TU)	-20 °C ～ +80 °C
Weight	approx. 90g
Degree of protection (if lines are connected)	IP 20
Location category	Indoor
Test standards	IEC 61643-21
