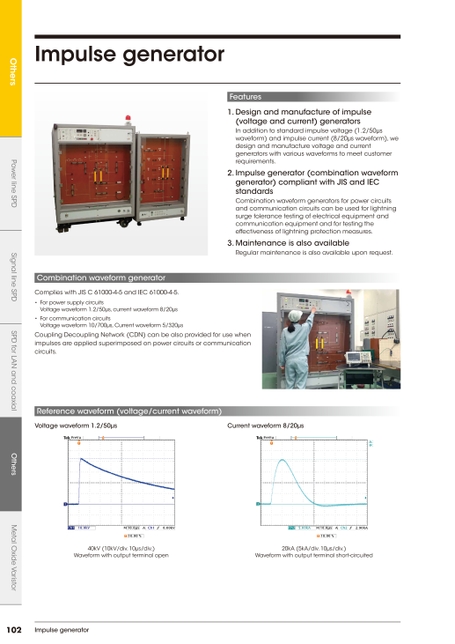

OthersPowerlineSPDSignallineSPDSPDforLANandcoaxialOthersMetalOxideVaristorImpulsegeneratorFeatures1.Designandmanufactureofimpulse(voltageandcurrent)generatorsInadditiontostandardimpulsevoltage(1.2/50μswaveform)andimpulsecurrent(8/20μswaveform),wedesignandmanufacturevoltageandcurrentgeneratorswithvariouswaveformstomeetcustomerrequirements.2.Impulsegenerator(combinationwaveformgenerator)compliantwithJISandIECstandardsCombinationwaveformgeneratorsforpowercircuitsandcommunicationcircuitscanbeusedforlightningsurgetolerancetestingofelectricalequipmentandcommunicationequipmentandfortestingtheeffectivenessoflightningprotectionmeasures.3.MaintenanceisalsoavailableRegularmaintenanceisalsoavailableuponrequest.CombinationwaveformgeneratorComplieswithJISC61000-4-5andIEC61000-4-5.•ForpowersupplycircuitsVoltagewaveform1.2/50μs,currentwaveform8/20μs•ForcommunicationcircuitsVoltagewaveform10/700μs,Currentwaveform5/320μsCouplingDecouplingNetwork(CDN)canbealsoprovidedforusewhenimpulsesareappliedsuperimposedonpowercircuitsorcommunicationcircuits.Referencewaveform(voltage/currentwaveform)Voltagewaveform1.2/50µsCurrentwaveform8/20μs40kV(10kV/div.10μs/div.)Waveformwithoutputterminalopen20kA(5kA/div.10μs/div.)Waveformwithoutputterminalshort-circuited102Impulsegenerator
| <
|
> |
>>
